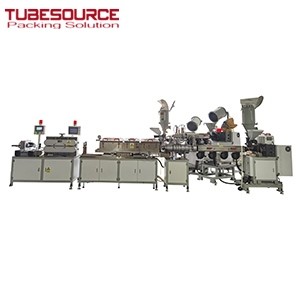

Five Layer Extruder Machine

Main Parameters for PE Extruder Tube Making Machine

1,Screw Dia (INNER)

Φ55mm L/D:32/1

2,Screw Dia (RESIN)

Φ40mm L/D:28/1

3,Screw Dia (EVOH)

Φ40mm L/D:28/1

4,Screw Dia (OUTER)

Φ50mm L/D:32/1

5,Screw type

Full Flight

6,Motor

10HP*2PCS; 7.5HP*2PCS

7,Water consumption, Cooling water

120L/min; 5-10℃

8,Consumption power

70KW

9,Extrusion Linear Speed

12m/min (Dia35mm)

10,Cutting speed

160-190pcs/min

11,Tube Dia

16mm-60mm

12,Max Noise

85dBA

13,Machine Dimension

7850mm*3350mm*2300mm(L*W*H)

14,Total weight

5500KG
